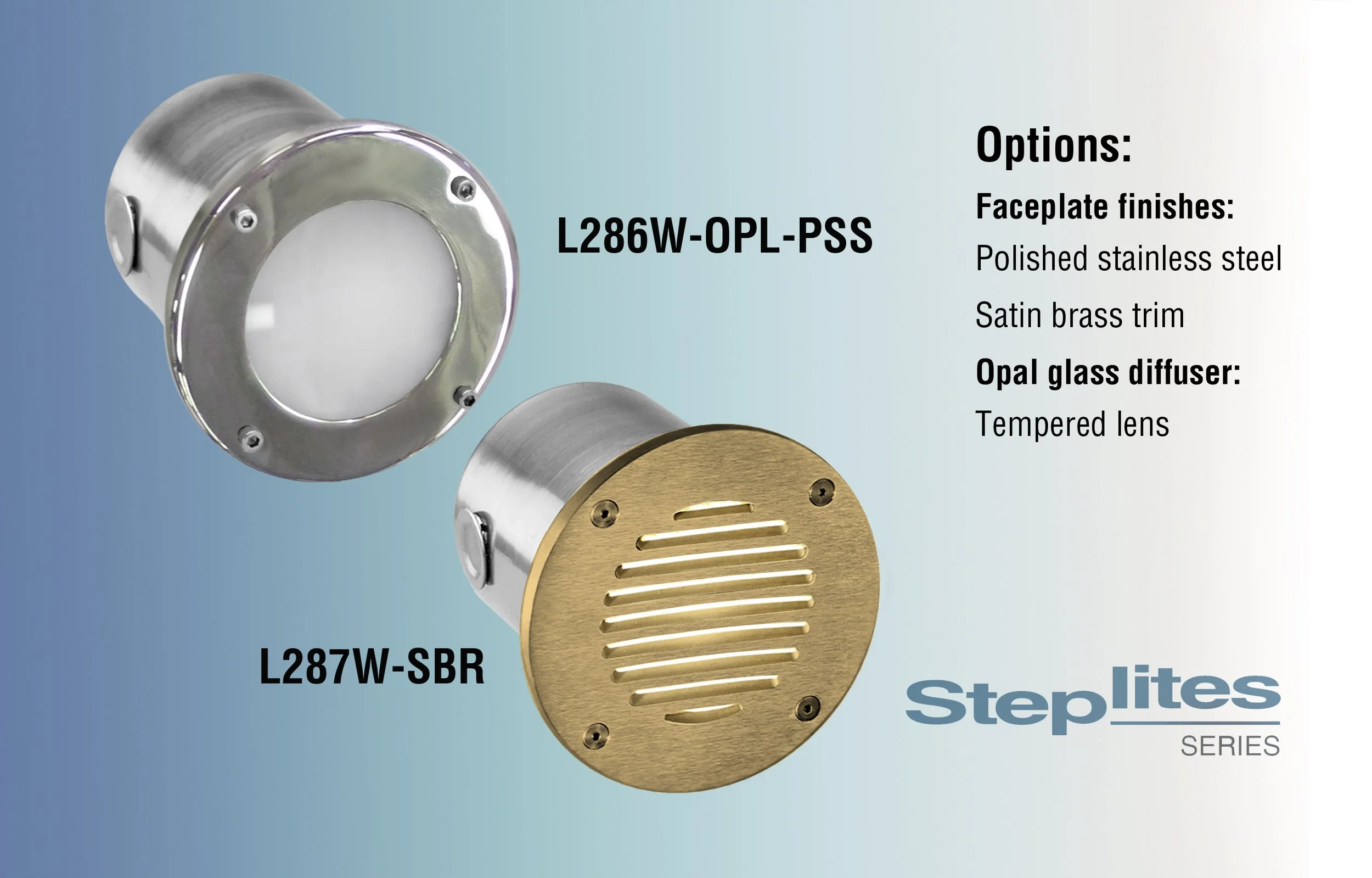

L286/L287
The L280 Series of Steplites offers a stylish means for compact, low level walkway illumination. The satin or polished stainless steel finishes add a premium quality appearance and the ribbed lens provides a jewel-like sparkle. The rugged construction, engineering excellence, and quality make these fixtures ideal for specification in most public areas.
Construction
Spun housing is 16 gauge stainless steel suitable for concrete pour installation
Spun stainless steel faceplates, passivated for maximum rust resistance, are gasketed and retained by four stainless steel tamperproof button-head fasteners
Louvered 3/16" thick L287 stainless steel faceplate is passivated for maximum rust resistance, and is gasketed and retained by four stainless steel fasteners
Vertically ribbed spread lens and L287 frosted diffuser are tempered glass set in silicone sealant
cETLus listed, suitable for wet locations in any wall construction
Electrical
High performance LEDs are available in a variety of colors
Integral driver is standard universal voltage; optional 0-10v dimming driver available
One 1/2" conduit knockout provided on each side of housing. Suitable for 4 wire thru-wiring, 2 in and 2 out
