L2159 Series

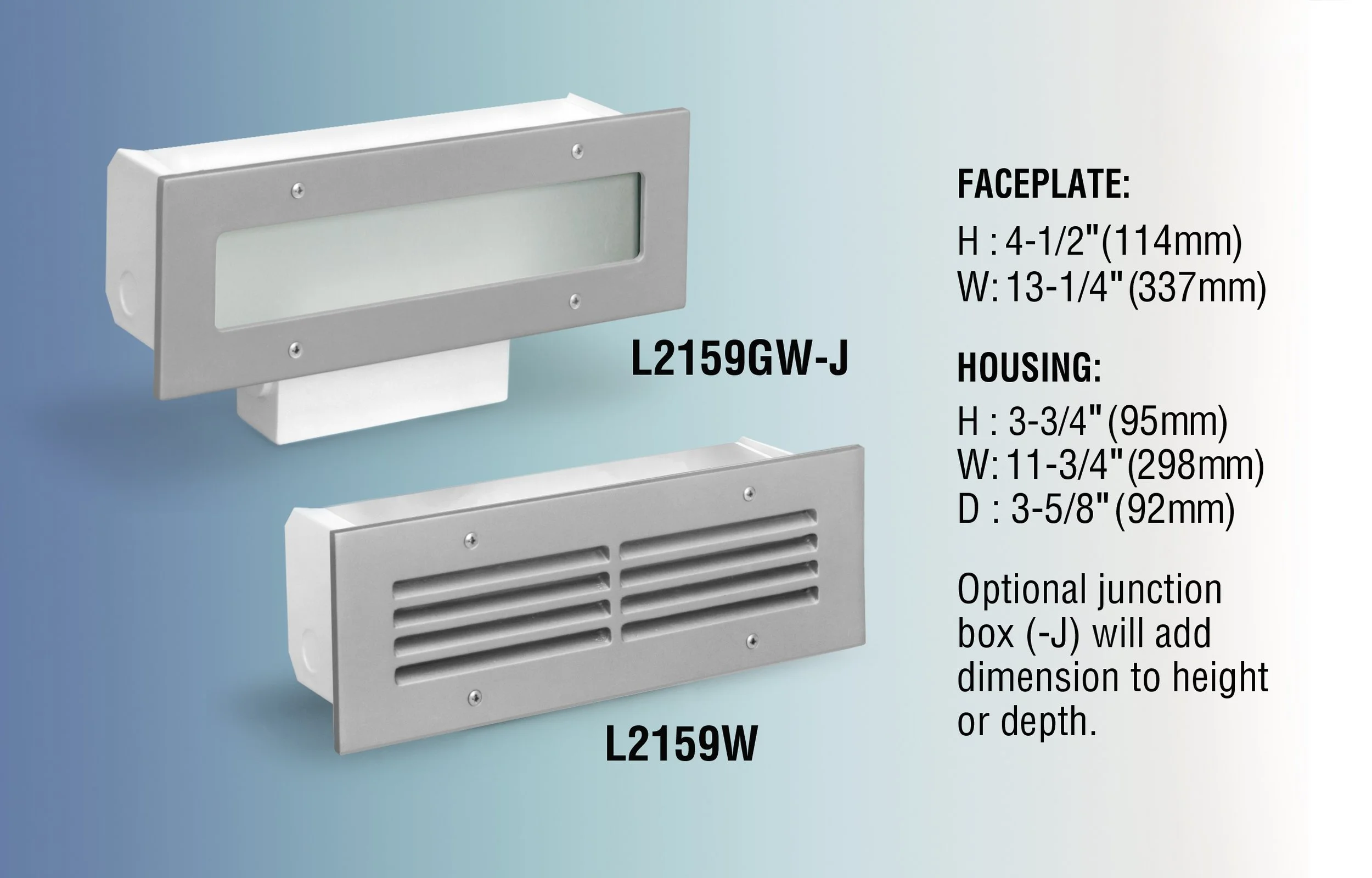

The L2159 and L2159D Directional series of Steplites are low-profile, high performance site fixture. Their width allows excellent light distribution to the sides as well as in front of the fixture for many interior and exterior location. Alternate faceplate designs are available, including standard louver, sharp cut-off louver, non-louver, non-louver, and Directional, each providing unique performance characteristics. The rugged construction, engineering excellence, and quality make these fixtures ideal for specification in most public areas.

Construction

  • Fixture housing is constructed from die-formed 16 gauge electro-galvanized steel finished with a white polyester

  • Faceplate is cast aluminum, with metallic aluminum powder coating, gasketed and retained by stainless steel screws

  • Diffuser is frosted tempered glass on louvered and non-louvered models, and vertically-ribbed tempered spread lens on Directional models. Each is set in silicone sealant

  • Optional junction box is cast aluminum with polyester coating

  • cETLus listed, suitable for wet locations in any wall construction

Electrical

  • Standard and high output LEDs are available in a variety of colors

  • Integral driver is standard universal voltage; optional 0-10v dimming driver available

  • Recessed housing provided with 1/2” conduit knockout on each side suitable for 4 wire thru-wiring, 2 in and 2 out

  • Optional junction box allows 8 wire thru-wiring, 4 in and 4 out. Provided with two 1/2" tapped conduit entrances in the bottom and one 1/2" conduit entrance in each side of housing
