TLA362/TLA364 Series
CONCRETE POUR INSTALLATION

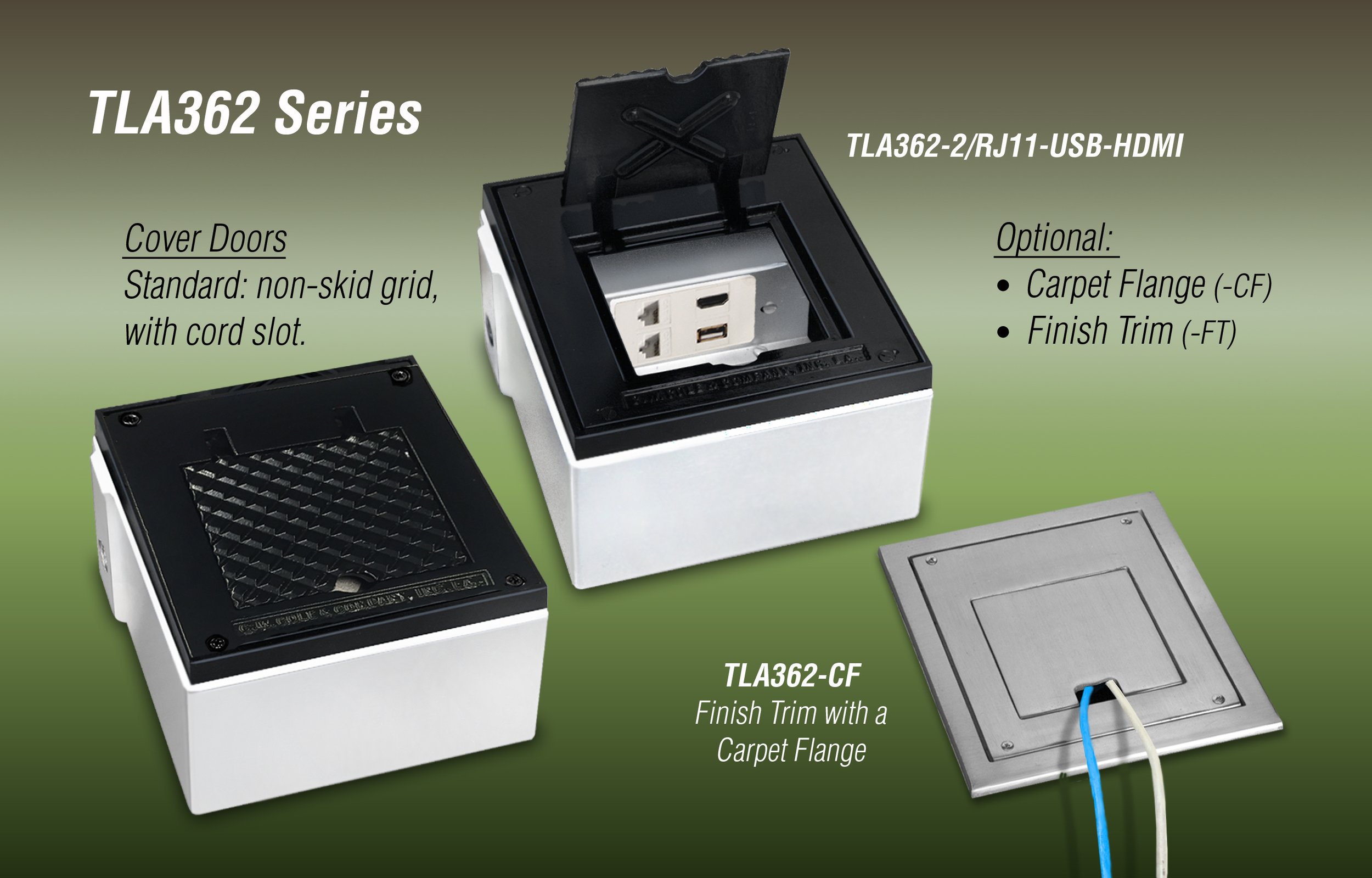

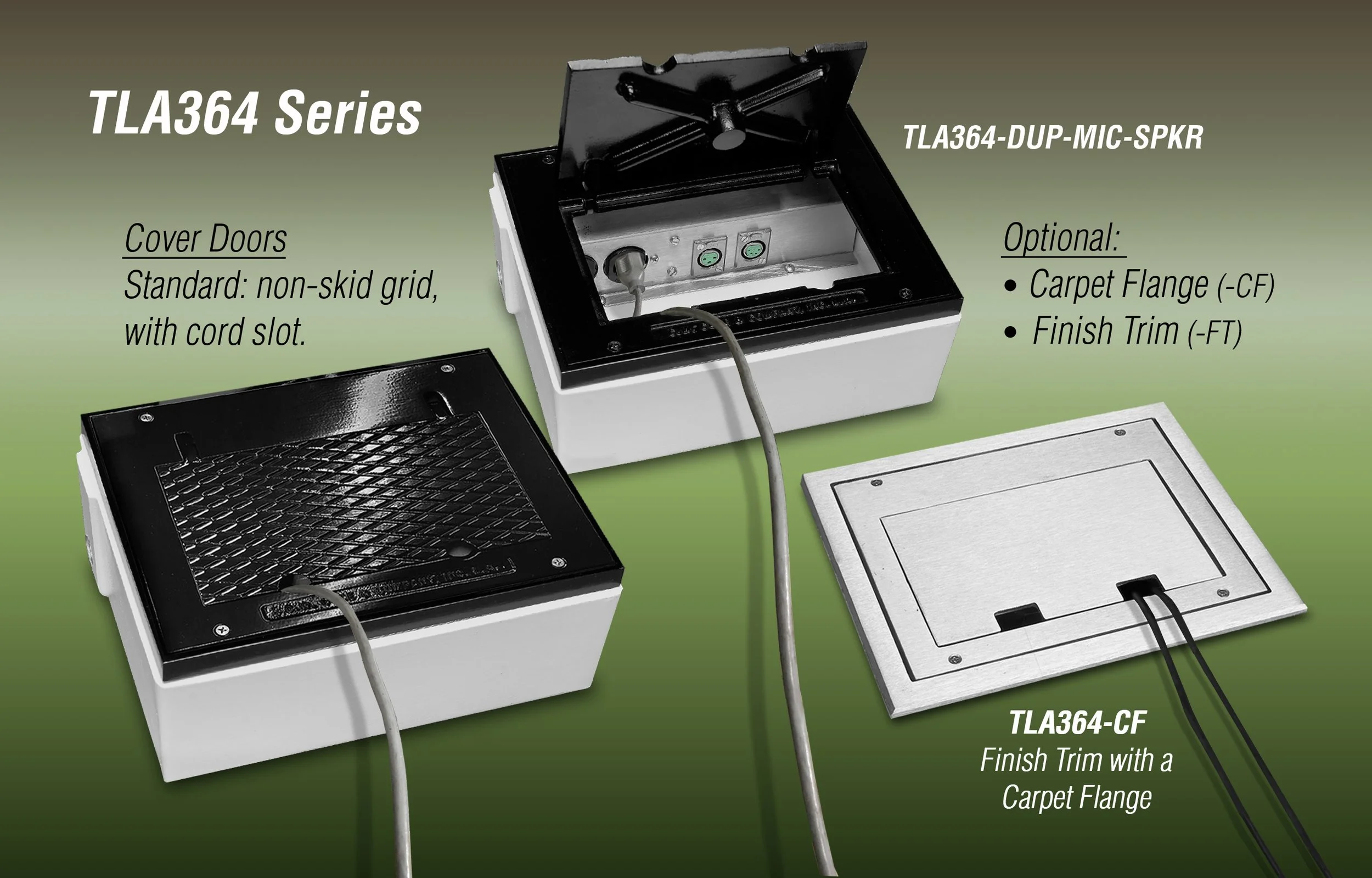

TLA362/TLA364 Series Plugging Boxes are recessed floor mounted enclosures designed for the temporary connection of up to two (362) or four (364) electrical devices in interior concrete pour installations. The cover set, with leveling screws, is adjustable and designed for dry pack grout after cover is leveled to finished floor. A non-skid textured surface is suitable for use in churches and school auditoriums. Optional Finish Trim substitutes a brushed/satin finish on a smooth surface, suitable for use in offices, classrooms, and other public areas.
Construction
Cast aluminum housing, door, frame and leveling collar are black polyester coated or finished in a brushed/satin
Optional brushed/satin finish, cast aluminum carpet flange overlaps housing to cover and protect edges of carpet
Device mounting plate is .063" aluminum
20 gauge electro-galvanized steel concrete “throw-away” cover provided to keep debris out of housing during concrete pour
Electrical
Factory installed wiring devices are available as illustrated
TLA364 models, with multiple voltage devices, have metal interior barrier between compartments
Recessed housing has two tapped 1/2" conduit entries, one for each voltage compartment
cETLus listed electrical Metallic Outlet Box
