TL210-WCS Series

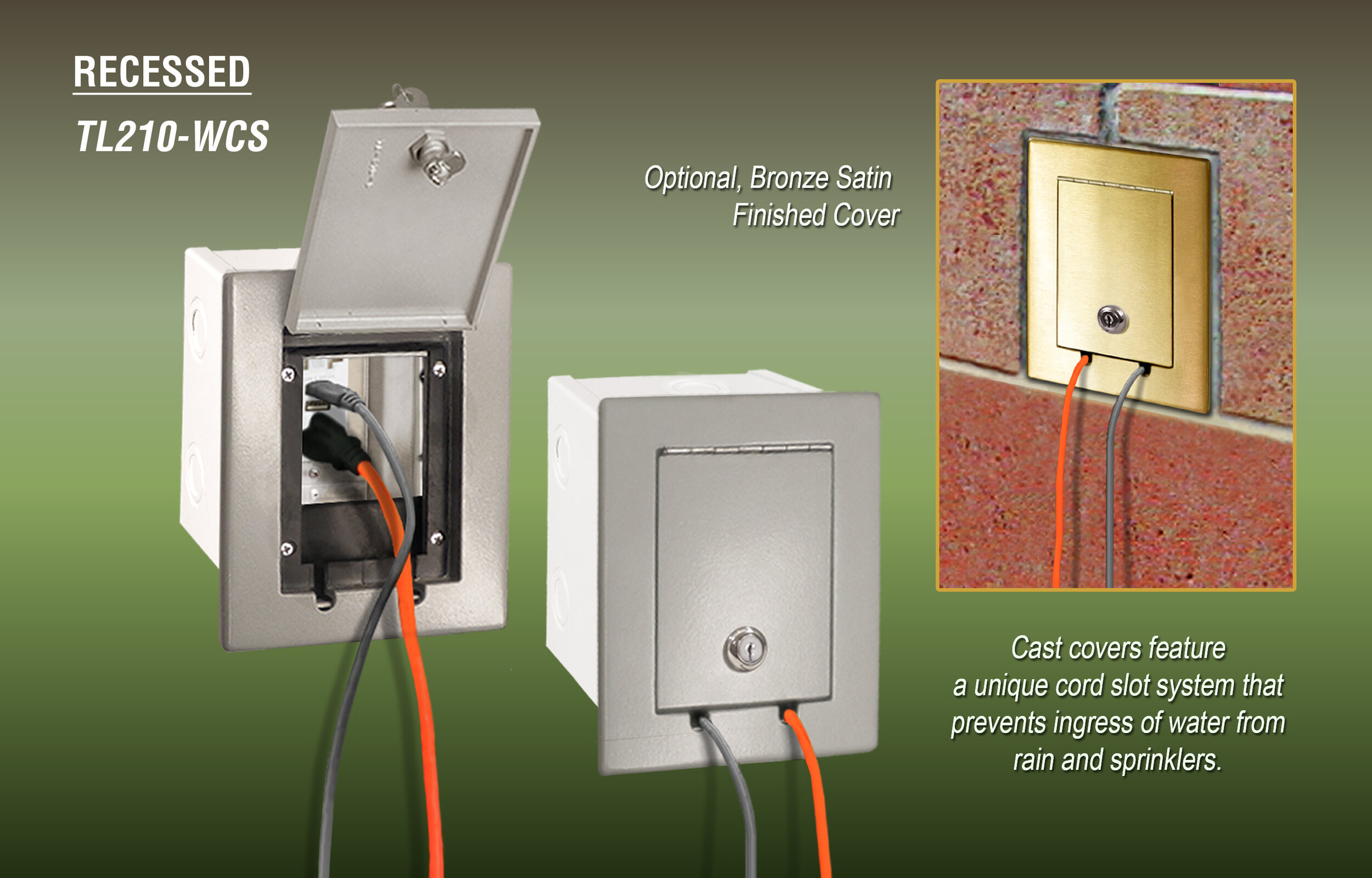

TL210-WCS Series Plugging Boxes are recessed and pedestal mounted enclosures designed for the temporary connection of electrical devices in exterior applications. Cast doors and frames feature a unique cord slot system that prevents rain and sprinkler water from reaching electrical devices while in use.
Construction

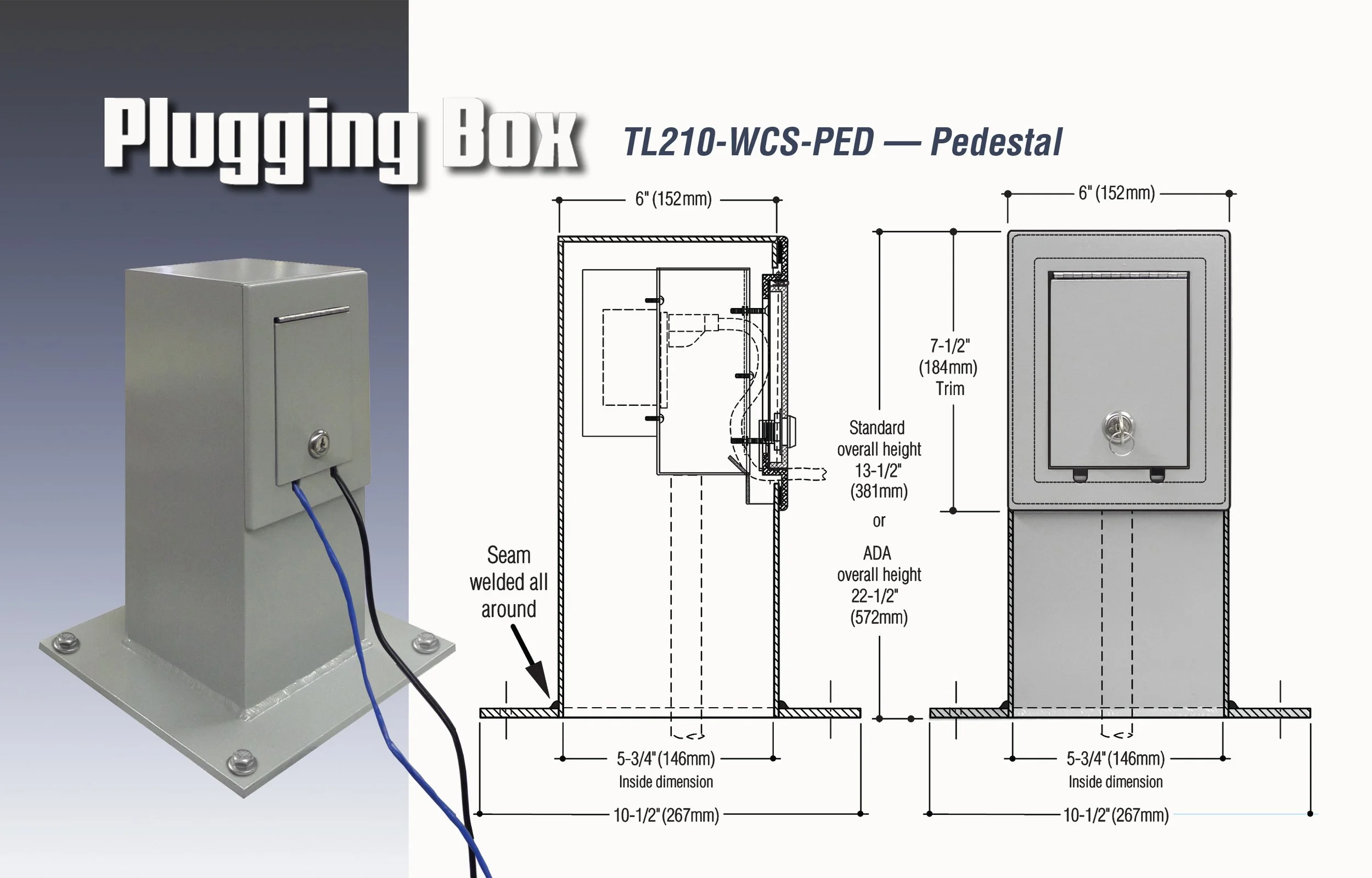

Recessed housings are die-formed 16 gauge, electro-galvanized steel, coated in white polyester and suitable for installation in concrete pour. Pedestal housings are constructed from 1/8" die-formed aluminum coated in metallic aluminum polyester. Pedestal baseplates are 1/4" aluminum
Gasketed doors and frames are cast aluminum with two integral cord-slots, stainless steel piano hinges, and locking or non-locking latches
Receptacle mounting plates and voltage barriers are .080" aluminum
Electrical
Factory installed wiring devices or combinations are available as indicated
Recessed housing has eight 1/2", 3/4",1" combination conduit knockouts
Pedestal allows room for two conduit stub-ups
cETLus electrical Metallic Outlet Box listed for installation in wet locations while in use
