Downlite - Dry Ceiling

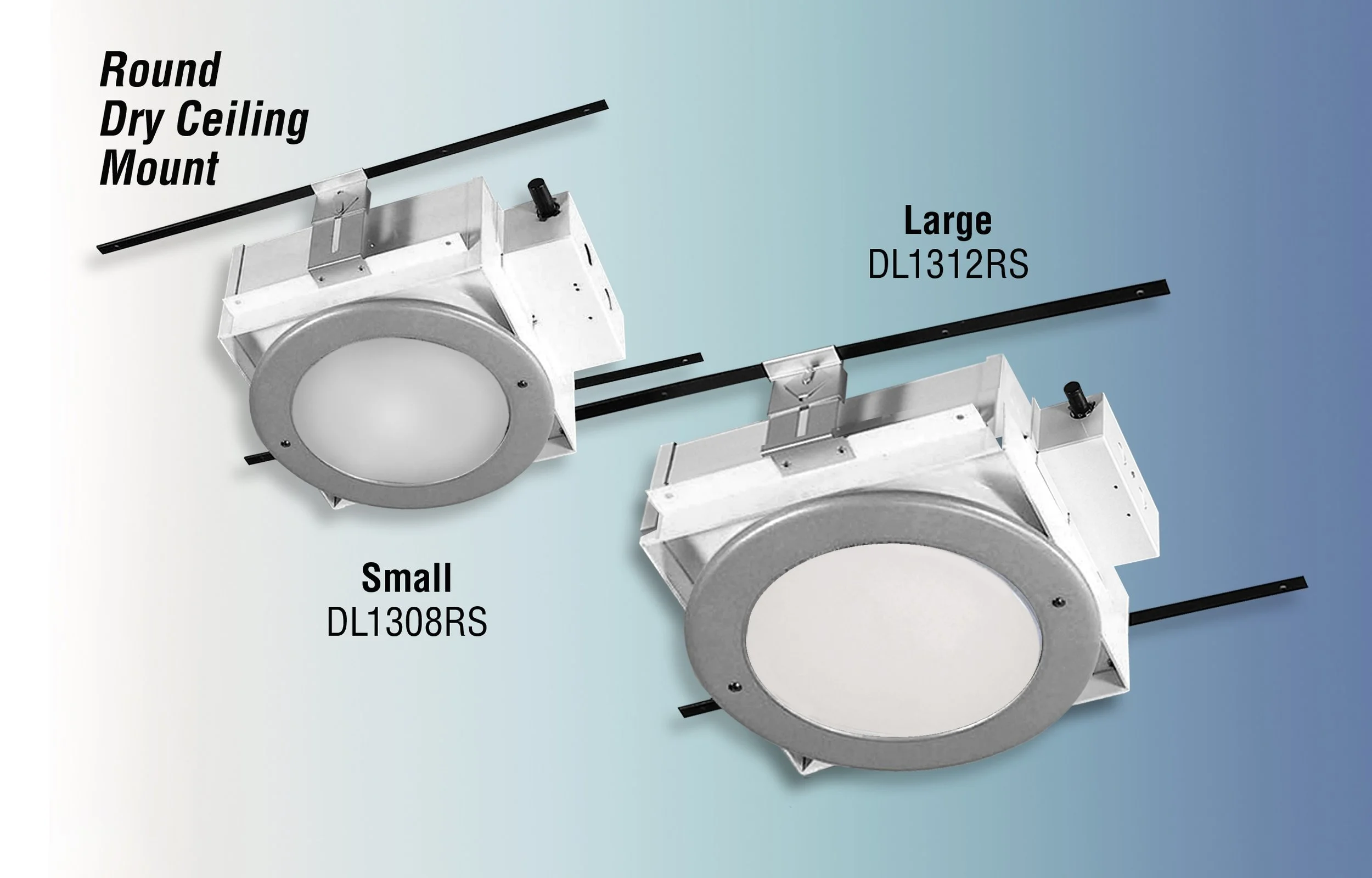

Downlites, suitable for installation in dry ceiling cavities, such as drywall/gypsum board, suspended ceilings, etc., are available in small and large sizes and with round and square trims fitted with a choice of lenses.
Construction
Small and large recessed housings are constructed from 16 gauge, electro-galvanized steel with white polyester coating, and are suitable for installation in dry ceilings

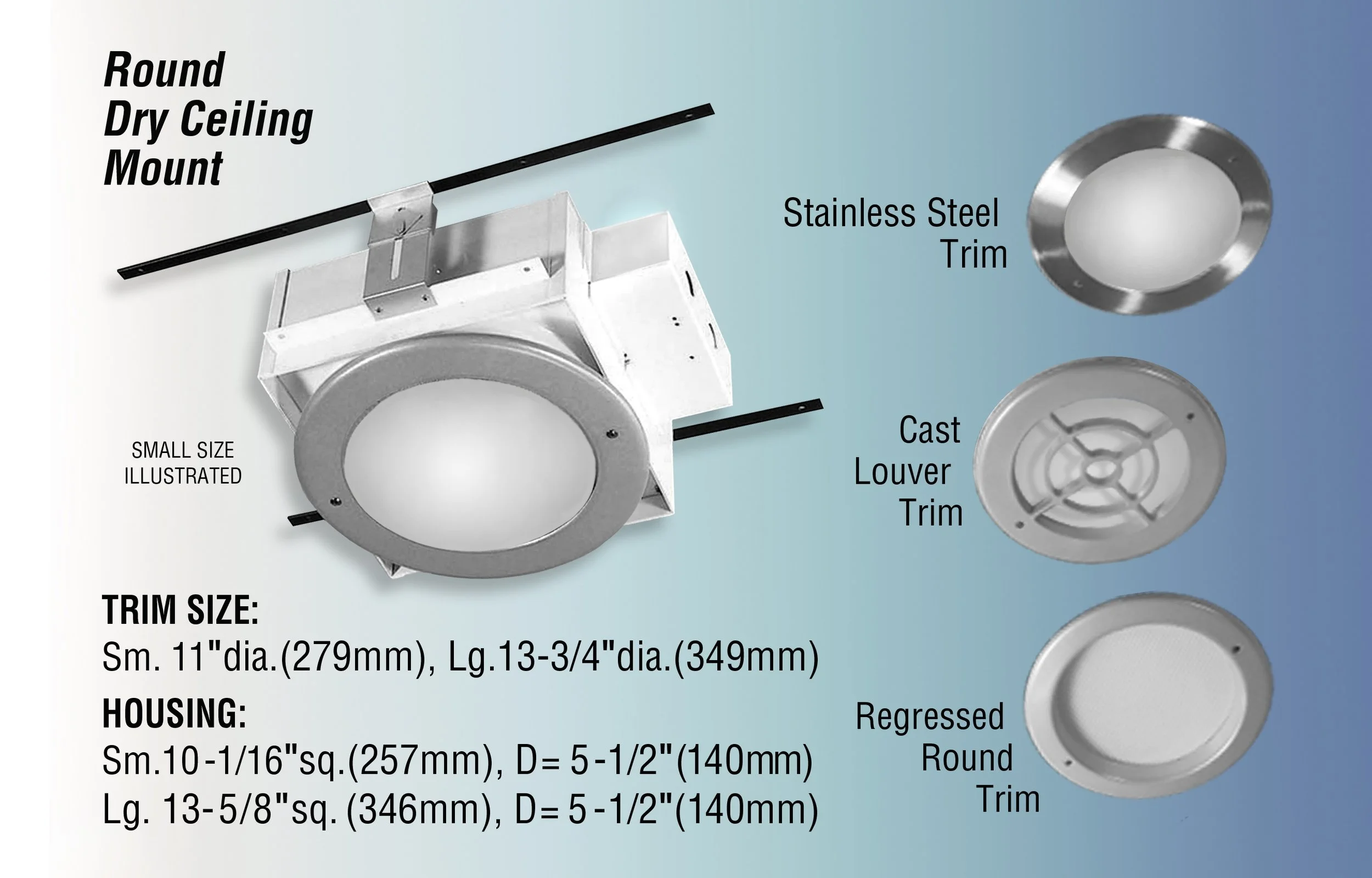

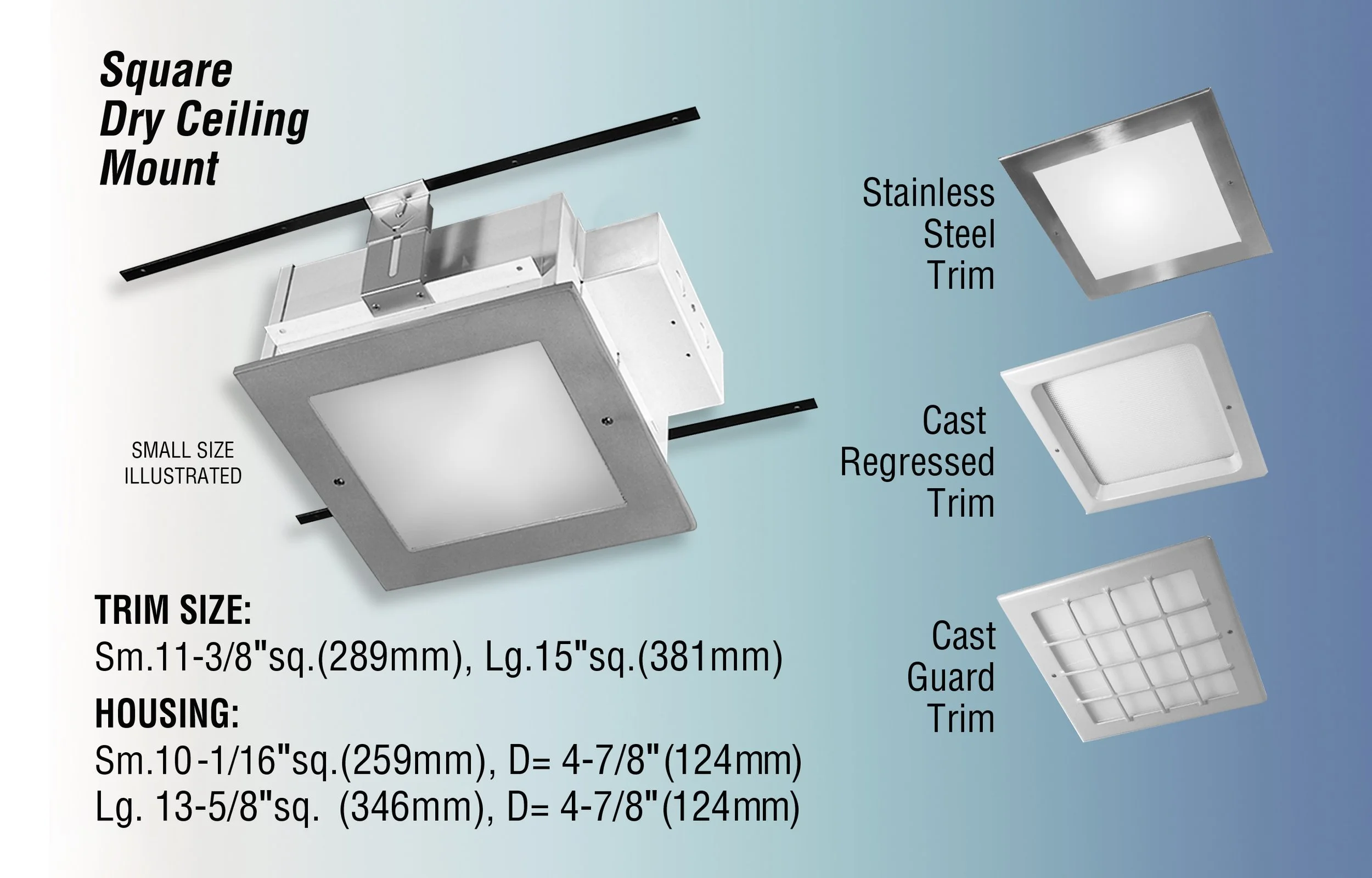

Round and square cast aluminum trim with metallic aluminum polyester coating or 18 gauge stainless steel trim with satin finish. Trims retained by drop hinge and secured by stainless steel screws
Semi-specular aluminum reflector on E26 lampholder models
Opal glass lens furnished as standard
Electrical
Standard and high output LEDs are available in a variety of colors
Integral driver is standard universal voltage; 0-10v dimming driver available
Internally accessible junction box has 1/2" conduit knockouts at each end and two in back
cETLus listed for wet locations when specified
Suitable for IC/non-IC ceiling construction
