SL Series Signlighter

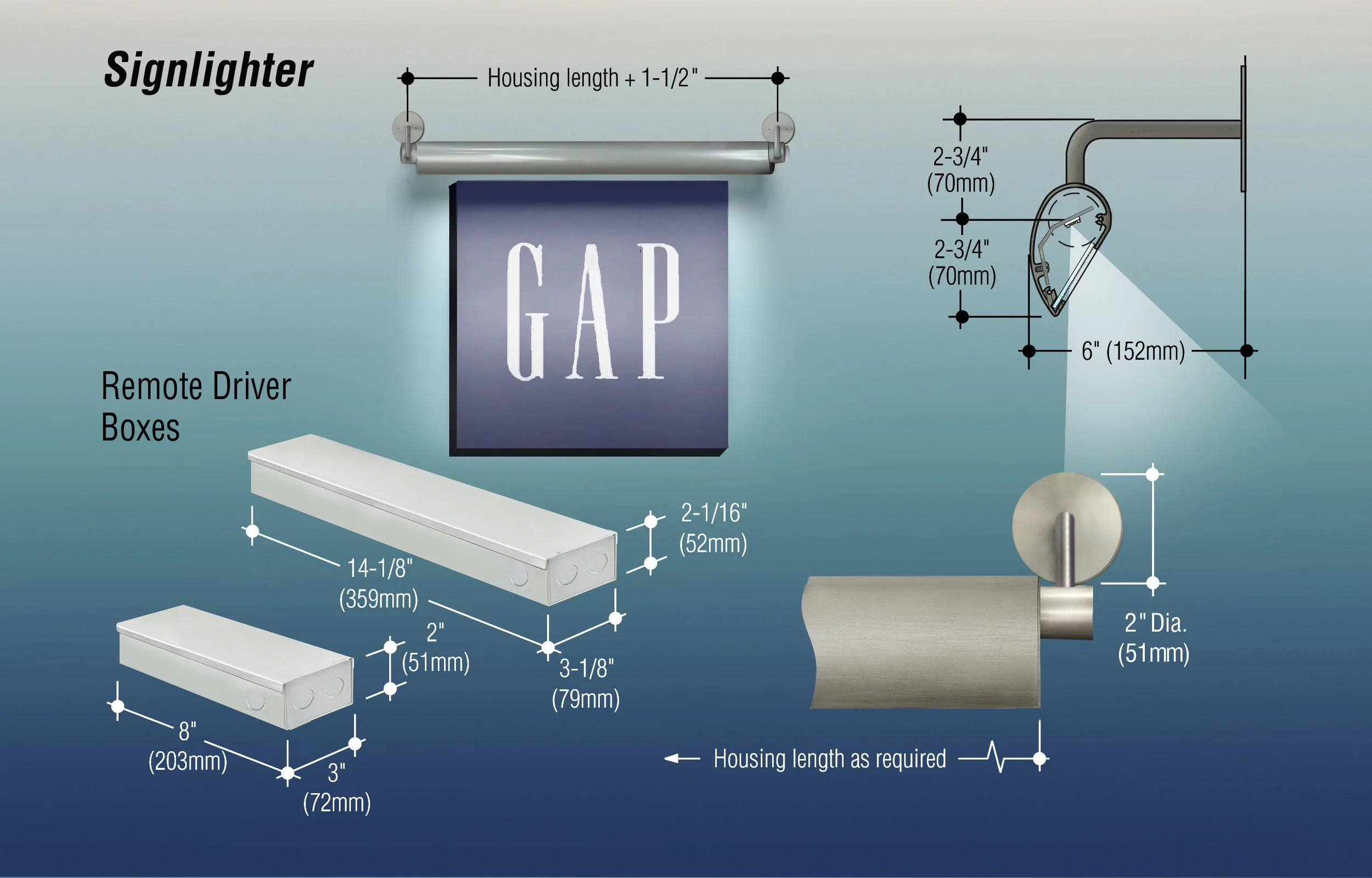

The SL Series Signlighter provides continuous illumination on vertical surfaces from a slim, stylish aluminum housing. Made-to-order lengths highlight the many customizable features of this product line. The mounting arm design allows fixture housing adjustment offering the ability to optimally frame the illumination footprint onto the sign surface. SL Signligher is suitable for interior and exterior installations. In addition to its intended use as a Signlighter, the SL Series is a perfect solution for book stack lighting and wallwashing.

Construction

  • Housing is extruded aluminum with a 12' maximum continuous length; tandem lengths available

  • Clear acrylic shielding below for LED light source when aperture is facing downwards. Secondary acrylic shielding used when aperture faces upwards

  • 6" long aluminum bracket arms welded to 5" diameter wall mounting plates; special arm lengths up to 30" available

  • Standard metallic aluminum polyester coating with optional brushed/satin clear anodized finish

Electrical

  • Continuous lengths of standard and high output LEDs placed within fixture housing to maximize even illumination over sign face

  • Universal voltage driver is remotely located in metal enclosure; optional weatherproof enclosure available

  • cETLus listed for use in wet locations
