L6oo Recessed

The L600 Series offers four useful sizes. Each size is available with powder-coated aluminum or satin stainless faceplates, as well as clear or frosted diffusers. Standard and high-output LEDs are offered, providing exceptional performance with below horizontal cut-off characteristics.

Construction

  • Recessed 16 gauge electro-galvanized steel, matte black housing is suitable for concrete pour installations

  • Faceplates are 3/16" metallic silver powder coated aluminum or satin finished stainless steel, passivated for maximum rust resistance

  • Fixtures are furnished with stainless steel socket head tamperproof screws

  • Diffuser are available in clear or frosted tempered glass, set in silicone sealant

  • Internal baffle is coated matte black to eliminate reflection

  • Optional junction box is cast aluminum with polyester coating

  • cETLus listed, suitable for wet locations in any wall construction

Electrical

  • Standard and high output LEDs can be positioned for 5°, 10° or 15° cutoff (5° is standard)

  • Integral driver is standard universal voltage; optional 0-10v dimming driver available

  • Recessed housing provided with 1/2" conduit knockout on each side, suitable for 4 wire thru-wiring, 2 in and 2 out

  • Optional photocell, occupancy sensor, or switch can be located adjacent to the aperture on the L603 Series

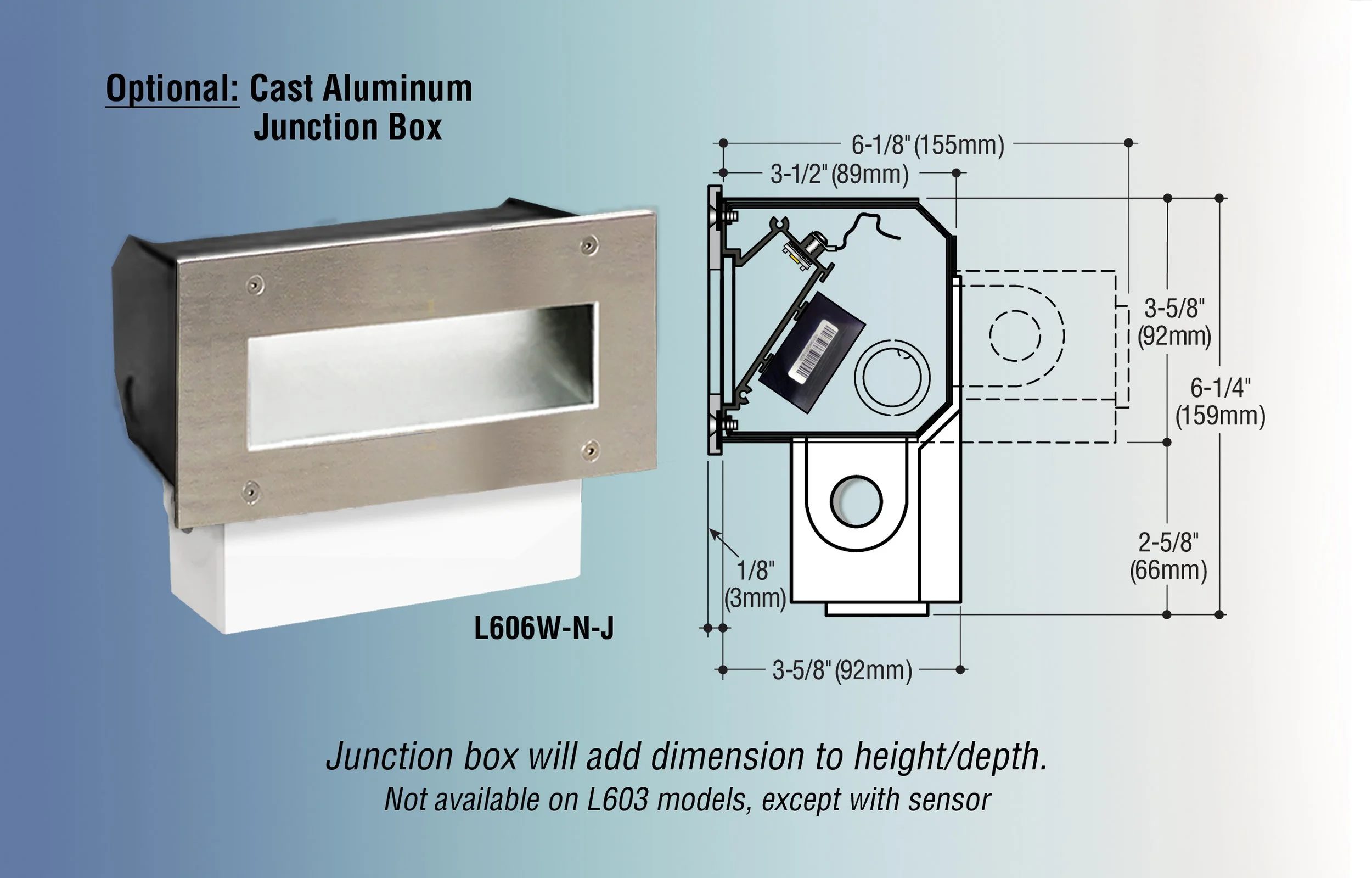

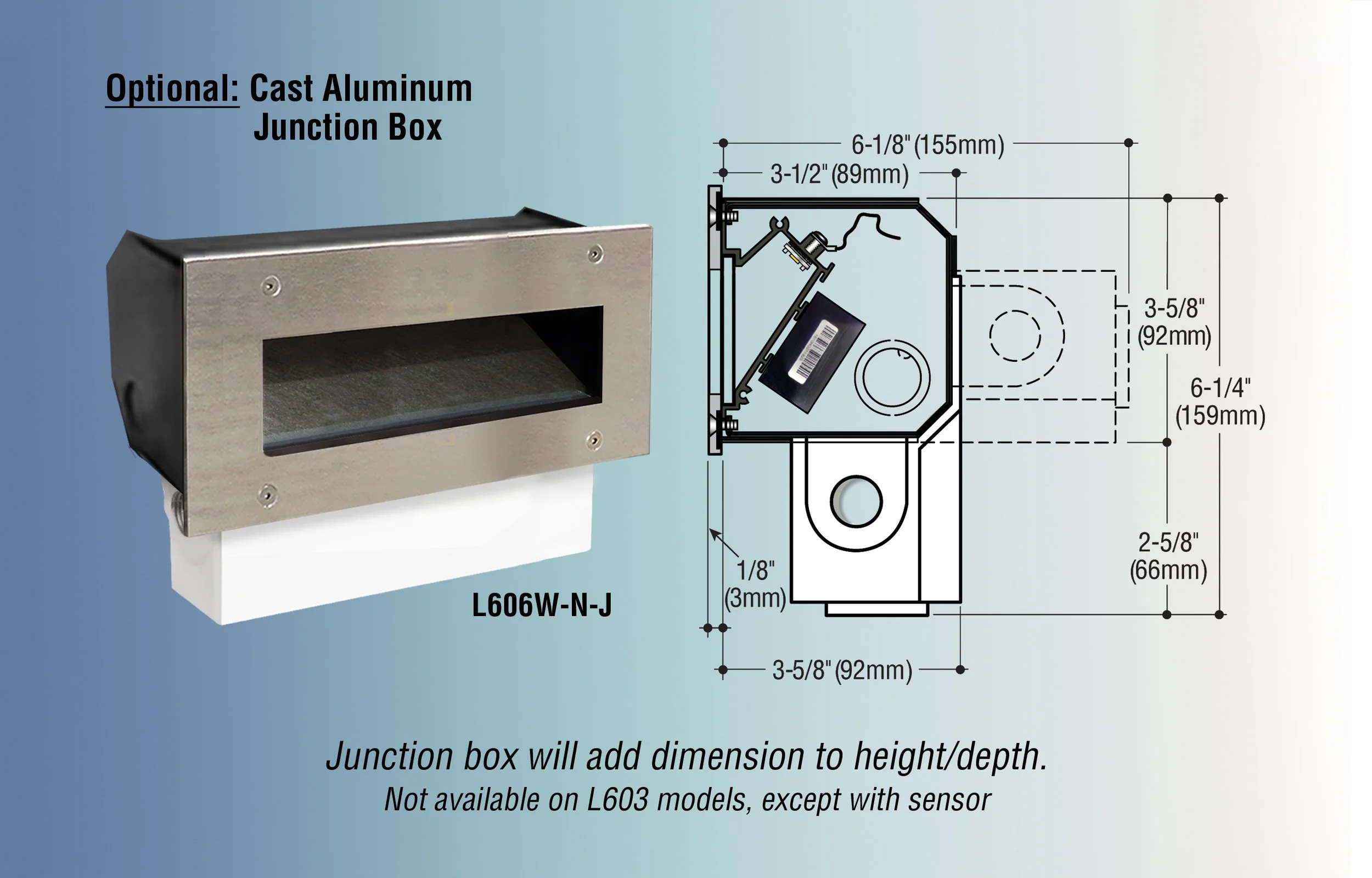

  • Optional junction box allows 8 wire thru-wiring, 4 in and 4 out. Provided with two 1/2" tapped conduit entrances in the bottom and one 1/2" tapped conduit entrance in each side
