Krystal Edgelighted Exits & Signs

Krystal Signs offer a classic design suitable for a variety of applications. The aluminum construction is both visually pleasing and possesses corrosion-resistant qualities. The construction is designed so the sign will remain attractive and functional with minimal maintenance requirements.

Construction

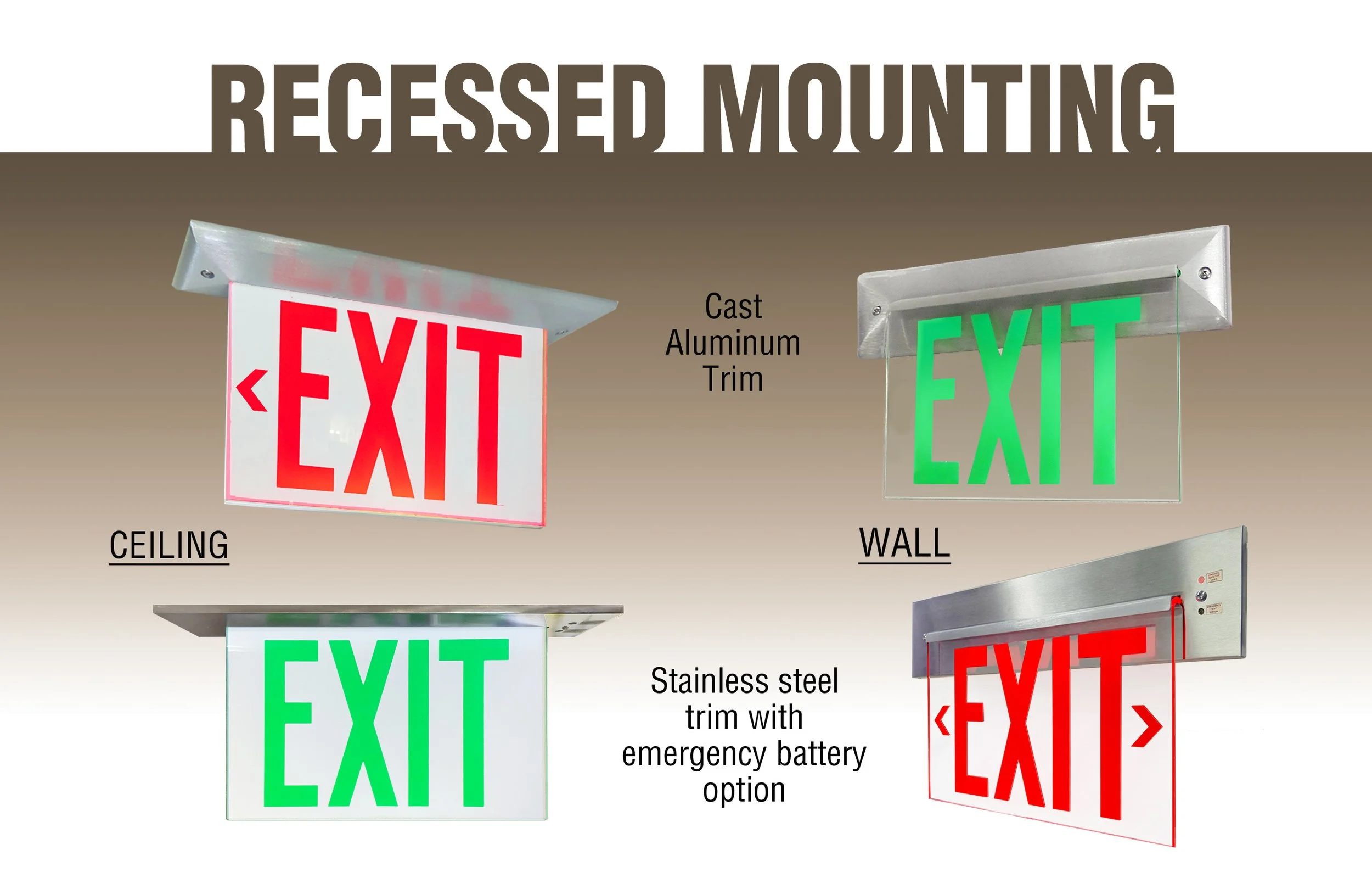

  • Recessed housing is 20 gauge steel and is furnished with two 18 guage steel mounting angles

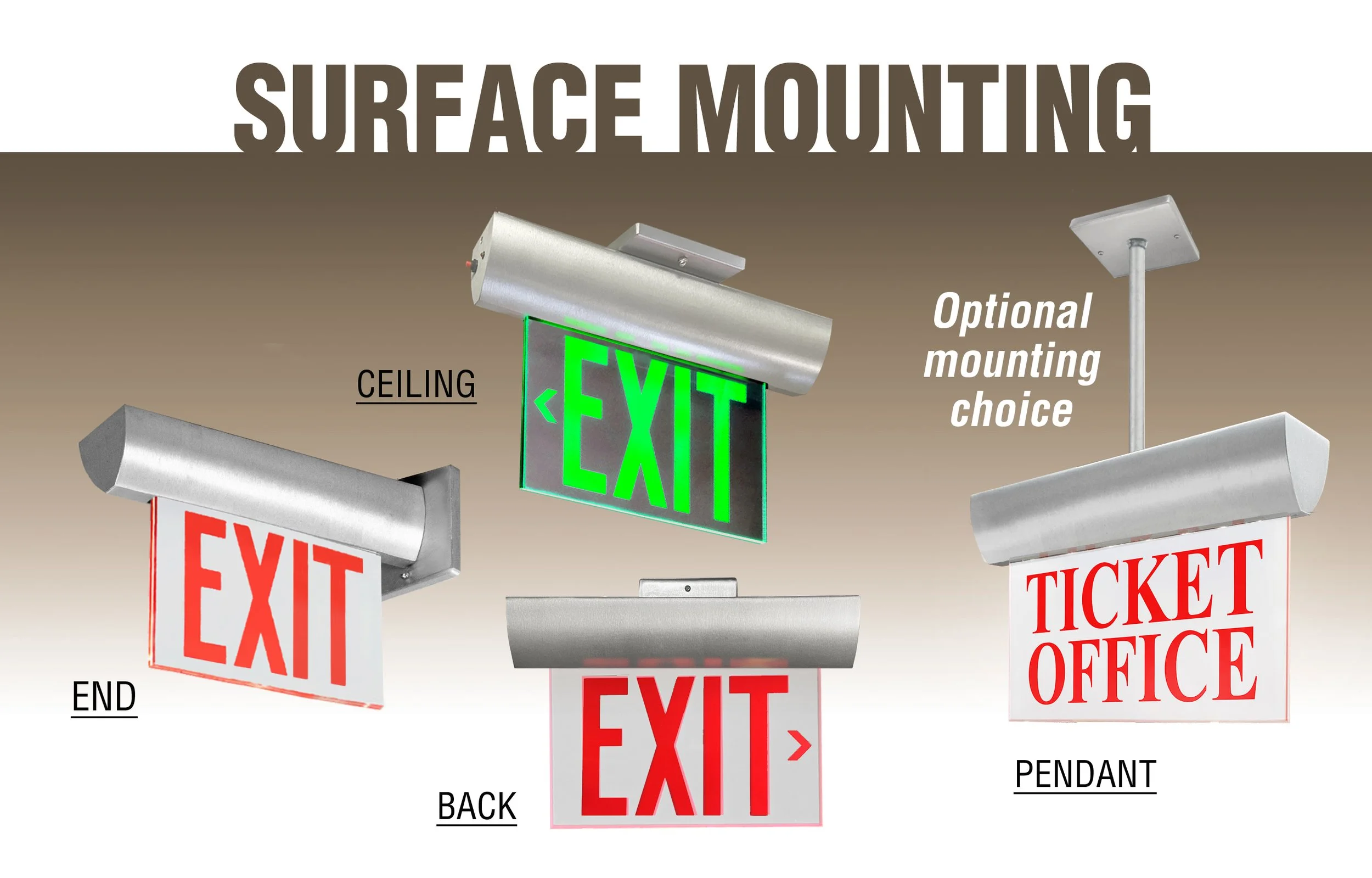

  • Surface housing and recessed trim are cast aluminum

  • Red or Green graphics are silkscreened on .188" clear acrylic

  • Acrylic graphics panel has white backing

  • Trim, housing, and bracket satin finished with clear coating

Electrical

  • Red or Green LEDs are dual-circuit and universal voltage

  • Available with emergency backup battery operation

  • ETL listing complies with UL 924 standard, meets NFPA Life Safety Code 101®
