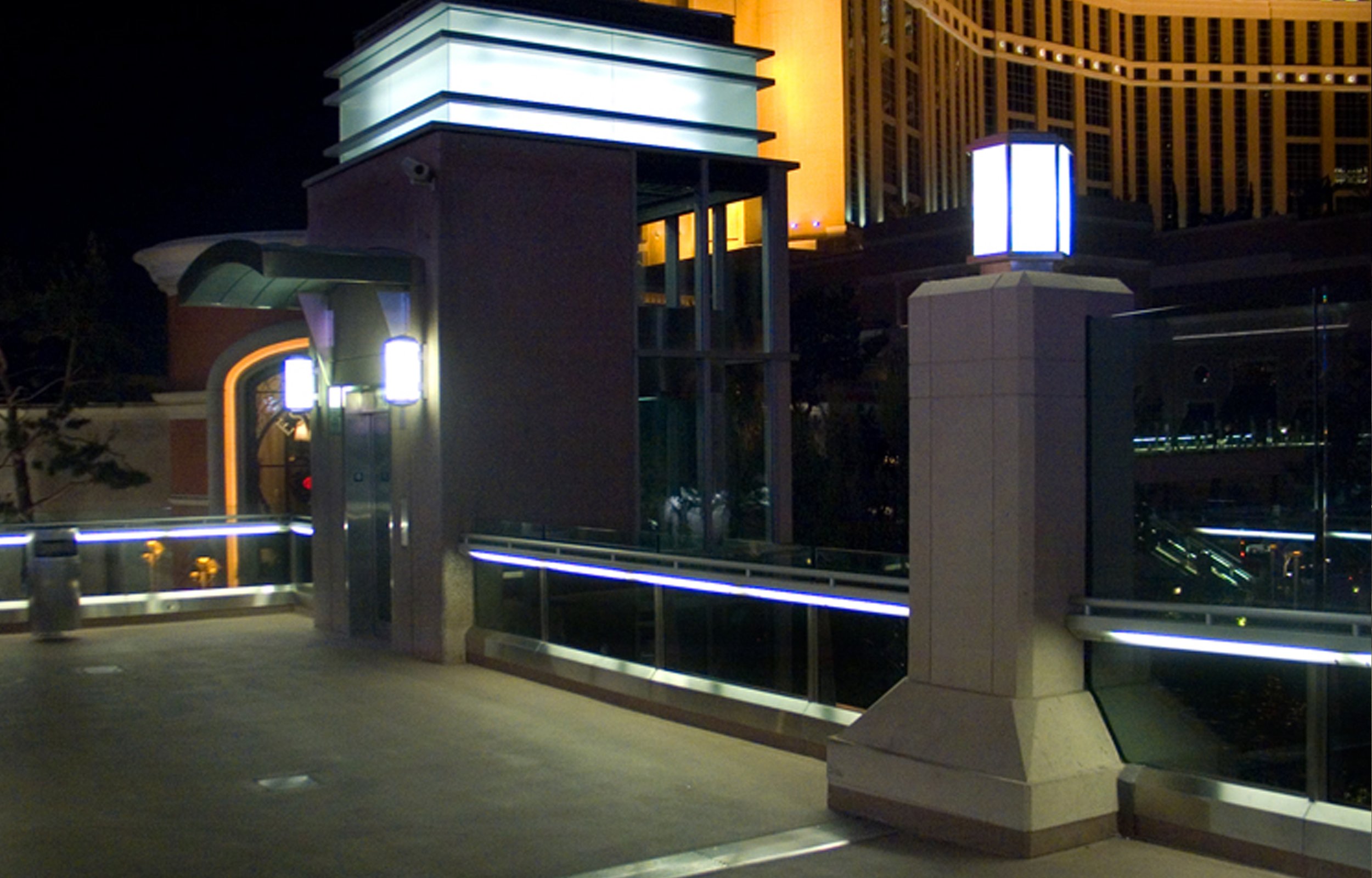

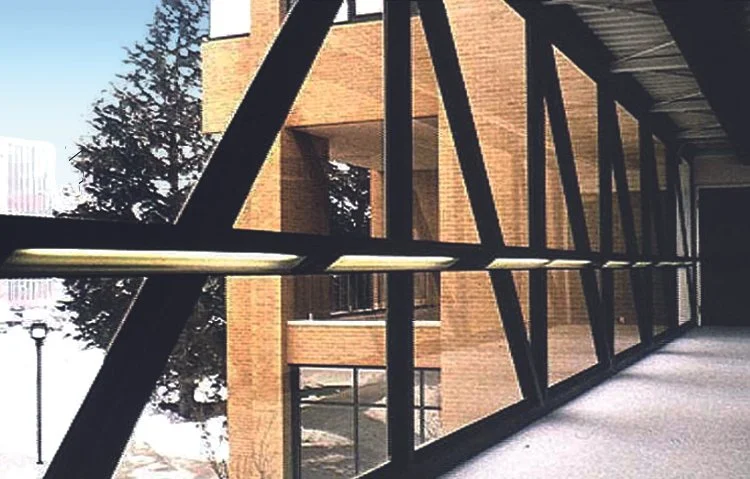

Illuminated Guardrail
When is an illuminated handrail not a handrail? When it’s a Guardrail, of course. Guardrails have the same structural requirements as a handrail; however, they’re not subject to ADA or paths of egress compliance. Additionally, the rails must fall within a 39" to 45" AFF height, rather than a handrail’s 34" to 38" AFF height.
Our Lightrail™ Illuminated Guardrail can be based on specific 3-1/2" diameter symmetric or 4-7/8" x 3-5/16" asymmetric aluminum extrusions. They can also be completely custom designs, which might include stainless steel or bronze construction, or an extrusion specially designed to fit in a unique cap rail. Whichever the preference, the illuminated Guardrail attaches to the structural post assembly, as provided by the railing contractor.
Construction
Housing construction can be extruded aluminum or formed stainless steel, brass, copper or bronze. Each would have welded and blended joints for a seamless appearance
A high impact extruded acrylic diffuser snaps into place and is further retained by fasteners at each end
Each rail is tailored to fit into existing railing system structure
Aluminum rails are polyester powder-coated; premium material formed rails are supplied with a satin finish that is clear-coated. Other finishes are available
Electrical
Continuous LED illumination is available in multiple colors and performance levels
Power supplies can be integral or remotely located
cULus listed for installation in wet locations
