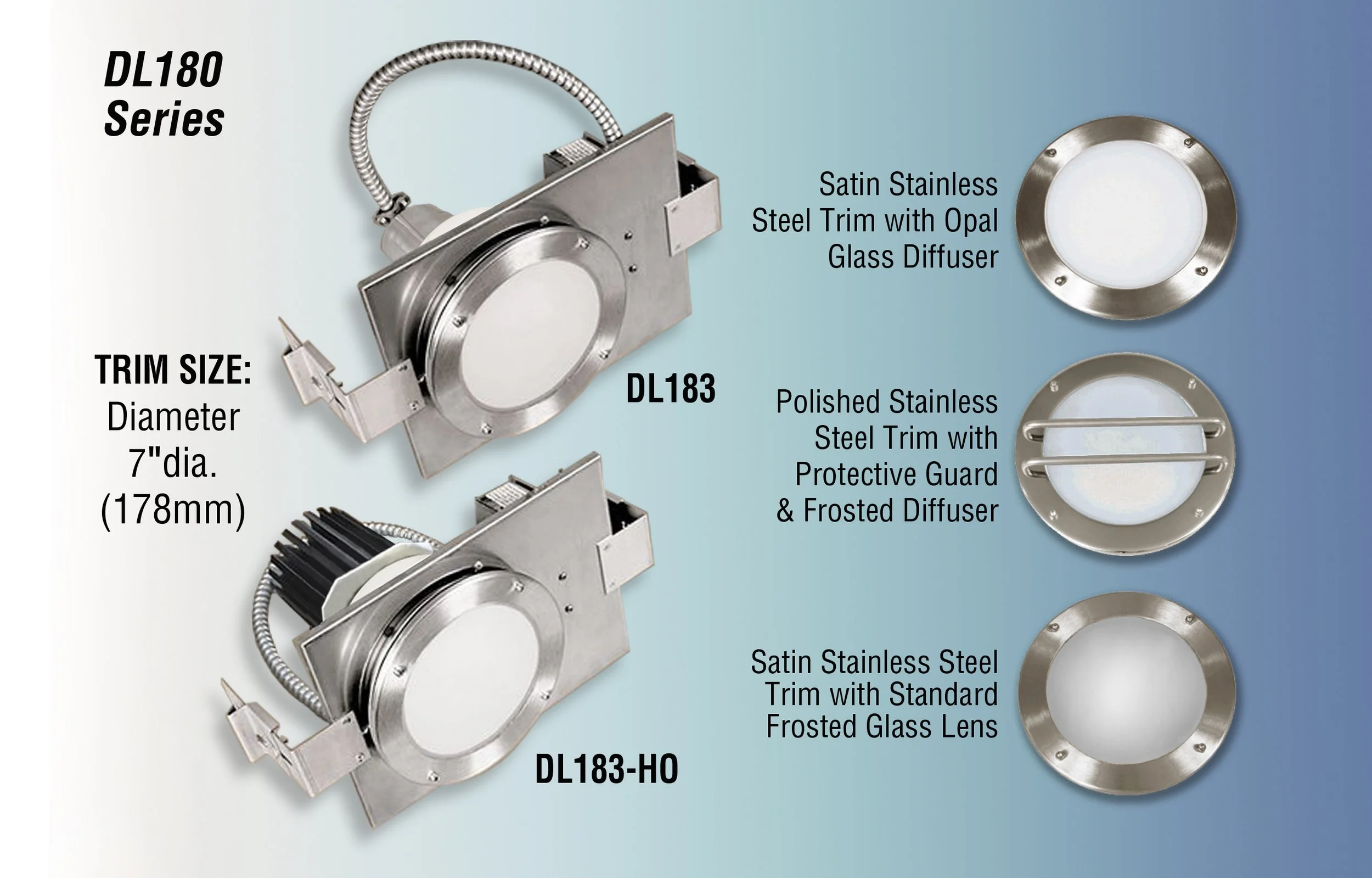

DL180 Series

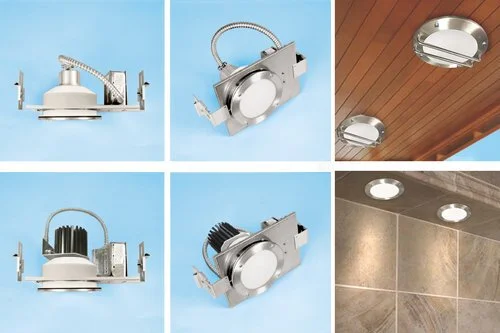

DL180 Series Downlites feature corrosion-resistant materials, such as the stainless steel trim and mounting pan, and anodized aluminum reflector and junction box. These features make this fixture perfect for use in showers, spas, and outdoor canopies. Their sleek appearance makes these fixtures appropriate for interior use too
Construction
Semi-specular reflector housing is spun aluminum
Trim is spun 18 gauge satin stainless steel, gasketed and retained by four stainless steel tamperproof socket head cap screws. Optional guard is 1/4" diameter stainless steel
Housing has adjustable hangers and two 18" mounting bars
Standard diffuser is opal glass
Electrical
Standard and high output LEDs are available in a variety of color
Integral driver is standard universal voltage; 0-10v dimming driver available
Internally accessible junction box has multiple 1/2" conduit knockouts on each side
cETLus listed for wet locations when specified
Suitable for IC/non-IC ceiling construction
