C1392D Directional Series

This Directional Series is the preferred Railite choice for effectively illuminating walkways from its mounting location in architectural railing systems. High-performance LEDs are located above the apertures and are positioned optimally for maximum forward performance and minimum glare to the eyes.

Construction

  • Fixture is constructed from either 20 gauge stainless steel or .050" aluminum

  • Aluminum models are powder coated, while stainless steel models are satin finished, passivated for maximum rust resistance

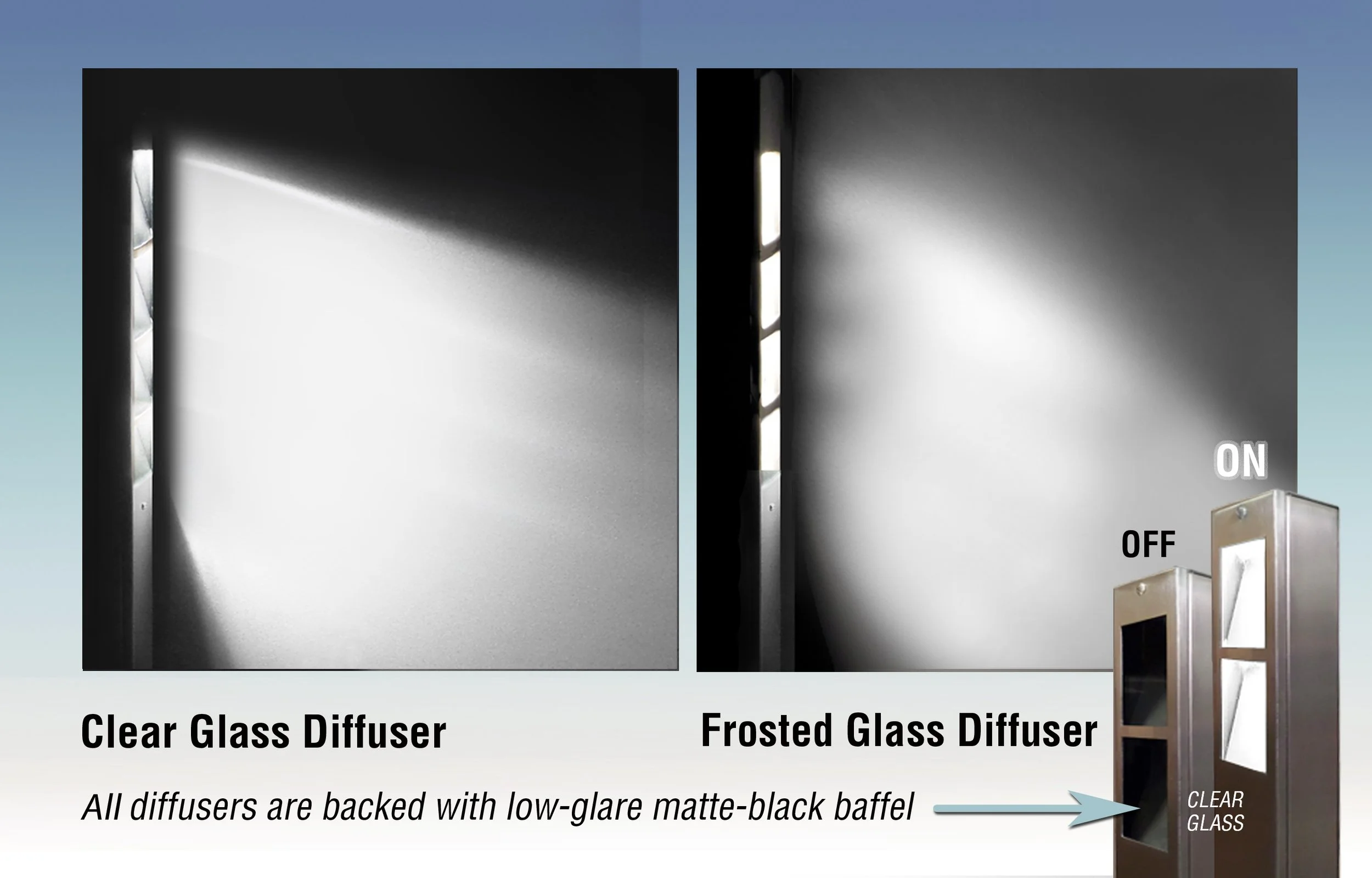

  • Faceplates are provided with clear tempered glass diffusers, backed with low-glare matte black baffles

  • cETLus listed for use in wet locations

  • Mounting holes furnished as required for specific job conditions

Electrical

  • Fixtures are available with standard and high-output LEDs

  • Integral driver is standard universal voltage; optional 0-10v dimming driver available

  • Remote drivers up to 60 watts can be specified to power multiple fixtures.
    Driver enclosures are available for damp, wet, and submersible applications

  • Provided with 1/2” knockout on either side; other locations available upon request
