L600 Sensors
This directional Steplite features high performance LEDs. Its unique optical design provides impressive forward-throw while eliminating any visible light above horizontal. The rugged construction, engineering excellence, and quality make this fixture ideal for specification in most public areas.
Features
Choices of powder coated aluminum or brushed stainless steel faceplates provide a sleek and modern appearance. Three LED positions available for a choice of cutoff. Integral driver simplifies specifications and installation. Four sizes are available to meet most needed requirements. Thru-wall models can adjust to varying wall thicknesses.
Application
The 600 Series Steplites are suitable for concrete pour/block wall and stud wall mounting in indoor or outdoor installations. They are ideal in walls, ramps and stairwells where high light levels are desirable.
Construction
Recessed housing is constructed from 16 gauge electro-galvanized steel, matte black powder-coated
Surface housing is constructed from 16 gauge satin finished stainless steel or .063" metallic silver powder coated aluminum
Faceplates are 3/16" metallic silver powder coated aluminum or satin finished stainless steel, passivated for maximum rust resistance
Fixtures are furnished with stainless steel socket head tamperproof screws
Diffuser is clear tempered glass, set in silicone sealant
Internal baffel is coated matte black to elliminate glare

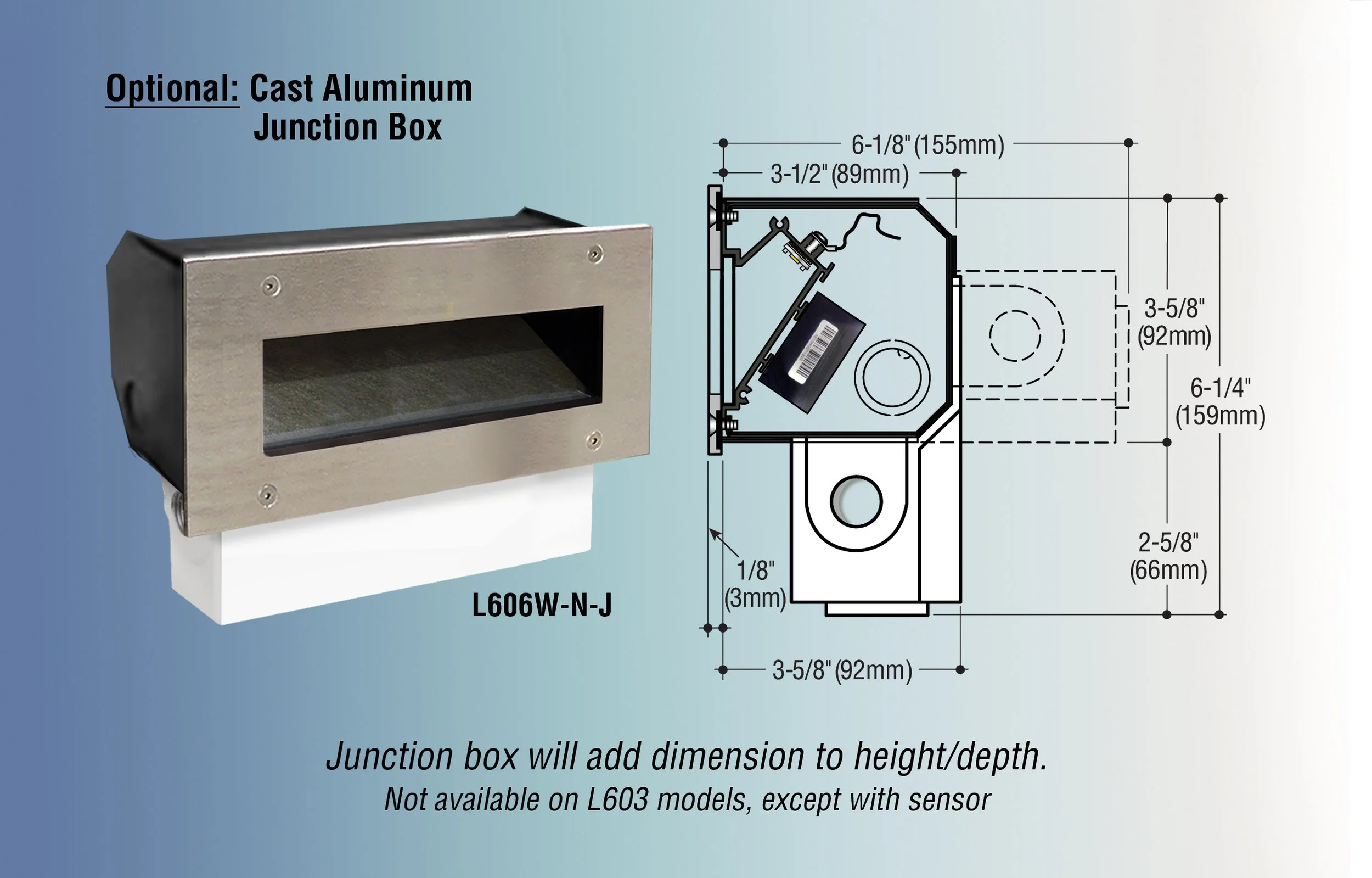

Optional junction box is cast aluminum with polyester coating
cETLus listed installation in any wall construction and suitable for wet locations in any wall construction.
Thru-wall housings allow 1" of adjustment for varying wall thicknesses Min. 4" wall thickness to 5" wall thickness.
Electrical
Fixture is wired with high performance LEDs positioned for 5°, 10° or 15° cutoff (5° is standard)
Integral driver is universal voltage
Recessed housing provided with 1/2" conduit knockout on each side, suitable for 4 wire thru-wiring, 2 in and 2 out. Surface housing conduit entries can be specified on either the sides, bottom or back of housing.
Optional junction box allows 8 wire thru-wiring, 4 in and 4 out. Provided with two 1/2" tapped conduit entrances in the bottom and one 1/2" tapped conduit entrance in each side.
