L2500 FannyPack

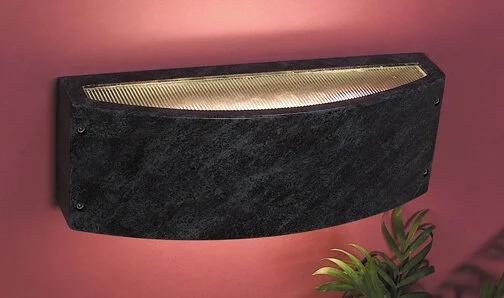

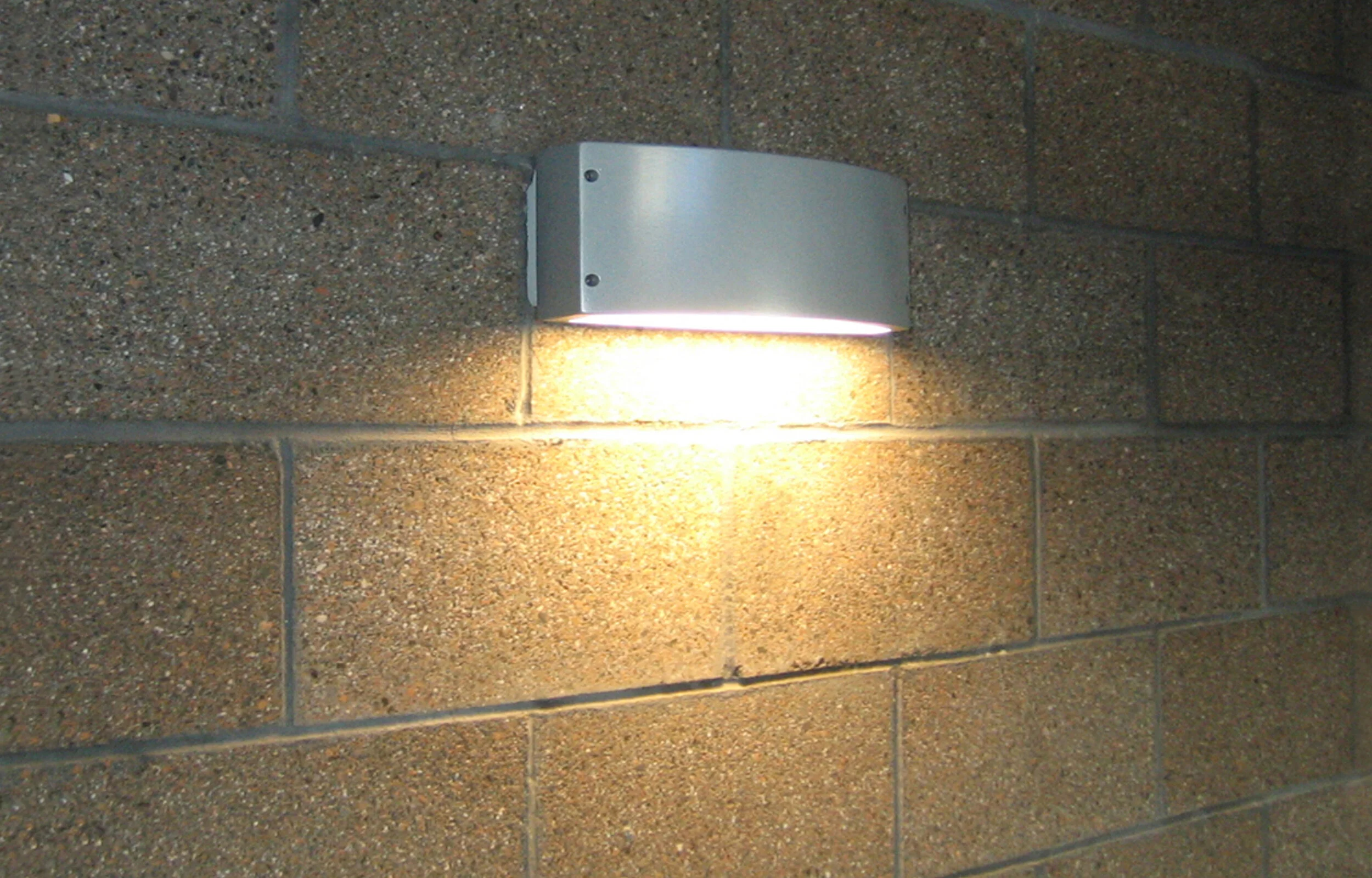

The L2500 Series Steplite is a heavy-duty, low-level surface wall mounted fixture for illuminating walkways and walls. The design offers the capability for uplighting, downlighting, or both.
Construction
ADA-compliant housing is cast aluminum with a 16 gauge stainless steel back mounting plate. Optional surface collar is .063” aluminum
Finish is textured black polyester. Other finishes are available
Fixture offers choices of frosted, ribbed spread, and prismatic lenses, each set in silicone sealant. Illumination can be directed up, down, or both
cETLus listed for use in wet locations
Electrical
Standard and high output LEDs are available in a variety of colors
Integral driver is standard universal voltage; optional 0-10v dimming driver available
Stainless steel wall plate and surface collar includes universal mounting pattern with center feed entry
