157 Recessed Series

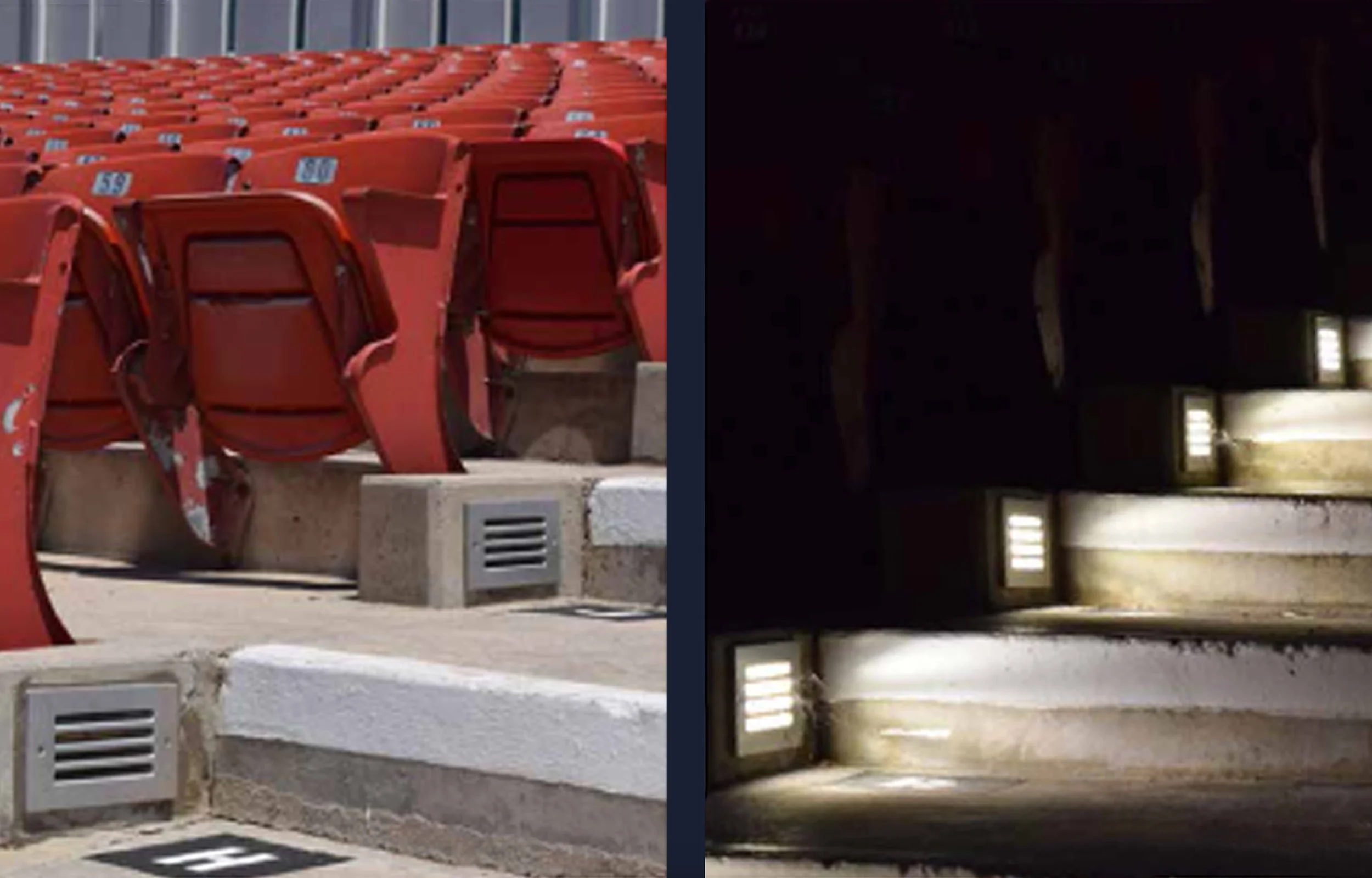

This compact Steplite with its standard louver, sharp cut-off louver, and non-louvered options is one of our most popular series. It is appropriate for a variety of interior or exterior applications. The rugged construction, engineering excellence, and quality make these fixtures ideal for specification in most public areas.
Construction
Recessed housing, suitable for concrete pour, is constructed from die-formed 16 gauge electro-galvanized steel and is coated with white polyester
Faceplates are cast aluminum with metallic aluminum polyester coating, gasketed and retained by stainless steel screws
Diffuser is frosted tempered glass, set in silicone sealant
Optional junction box is cast aluminum with polyester coating
cETLus listed, suitable for wet locations in any wall construction
Electrical
Standard and high output LEDs are available in a variety of colors
Optional E26/medium base LED lamp
Integral driver is standard universal voltage; optional 0-10v dimming driver available
Recessed housing provided with 1/2" conduit knockout on each side suitable for 4 wire thru-wiring, 2 in and 2 out
Optional junction box allows 8 wire thru-wiring, 4 in and 4 out. Provided with one 1/2" tapped conduit entrance in the bottom and one 1/2" conduit entrance in each side
