L131 Series

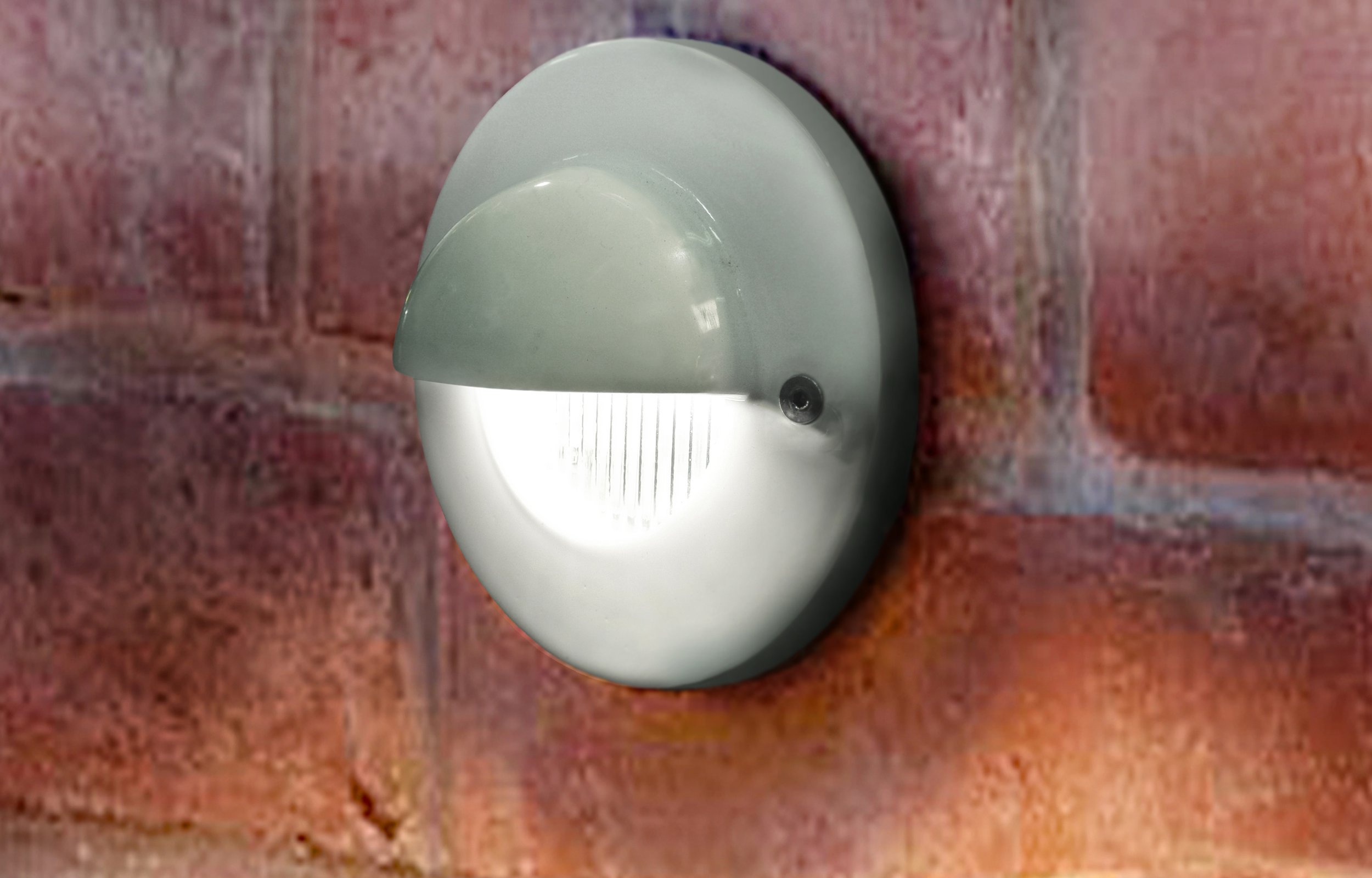

The L131 Series Steplites provide heavy-duty, cast aluminum construction in a handsome, small package. High-performance LEDs, along with integral drivers, are available in different colors. The faceplate design features low-glare performance with no direct view of the LEDs’ brightness. Its exterior rating makes it ideal for use in side walls along stairways, walkways, and ramps.

Construction

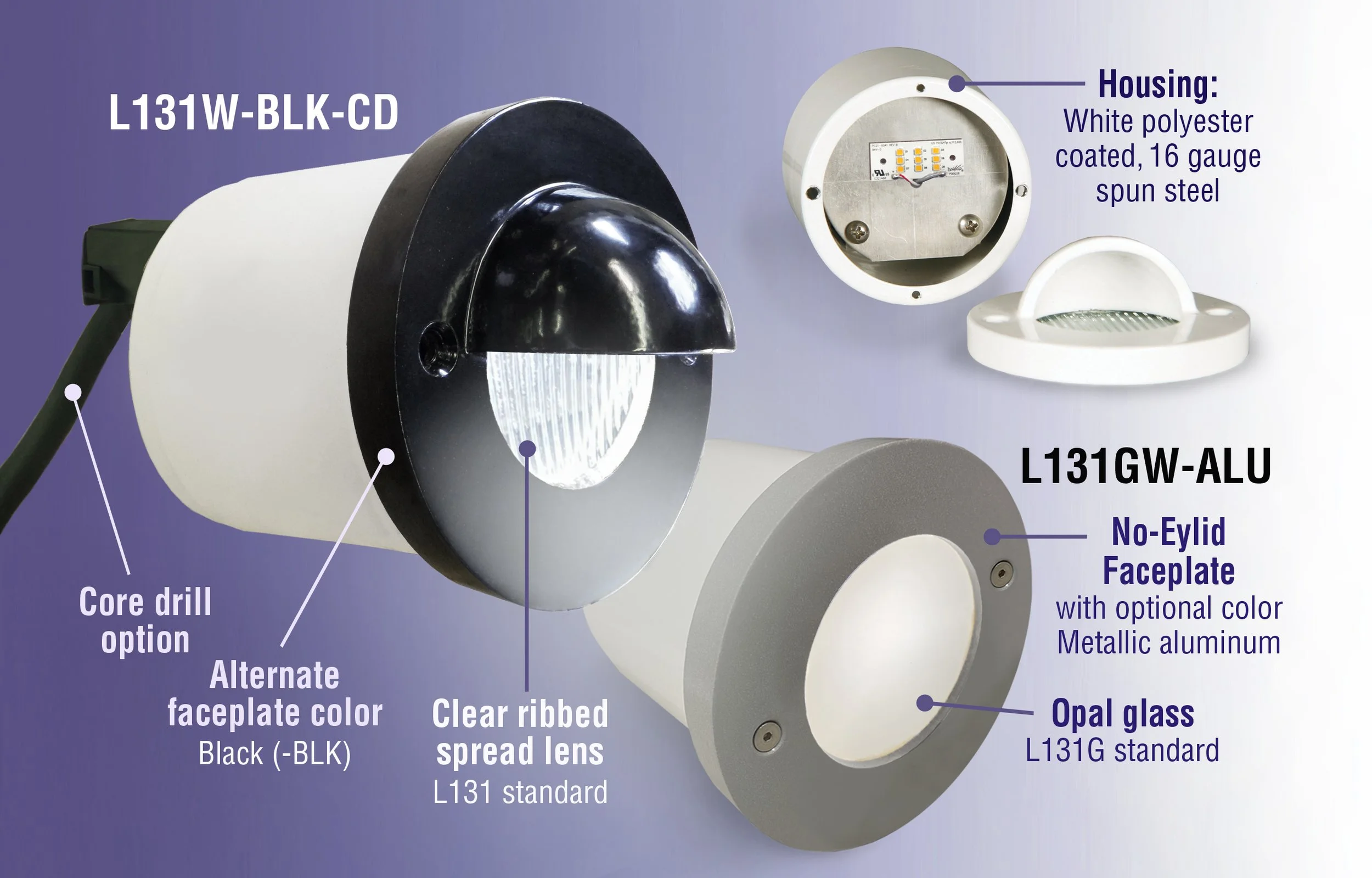

  • Housing is white polyester coated, 16 gauge spun steel suitable for concrete pour installations

  • Cast aluminum eyelid faceplate has a white polyester finish and is retained by stainless steel screws

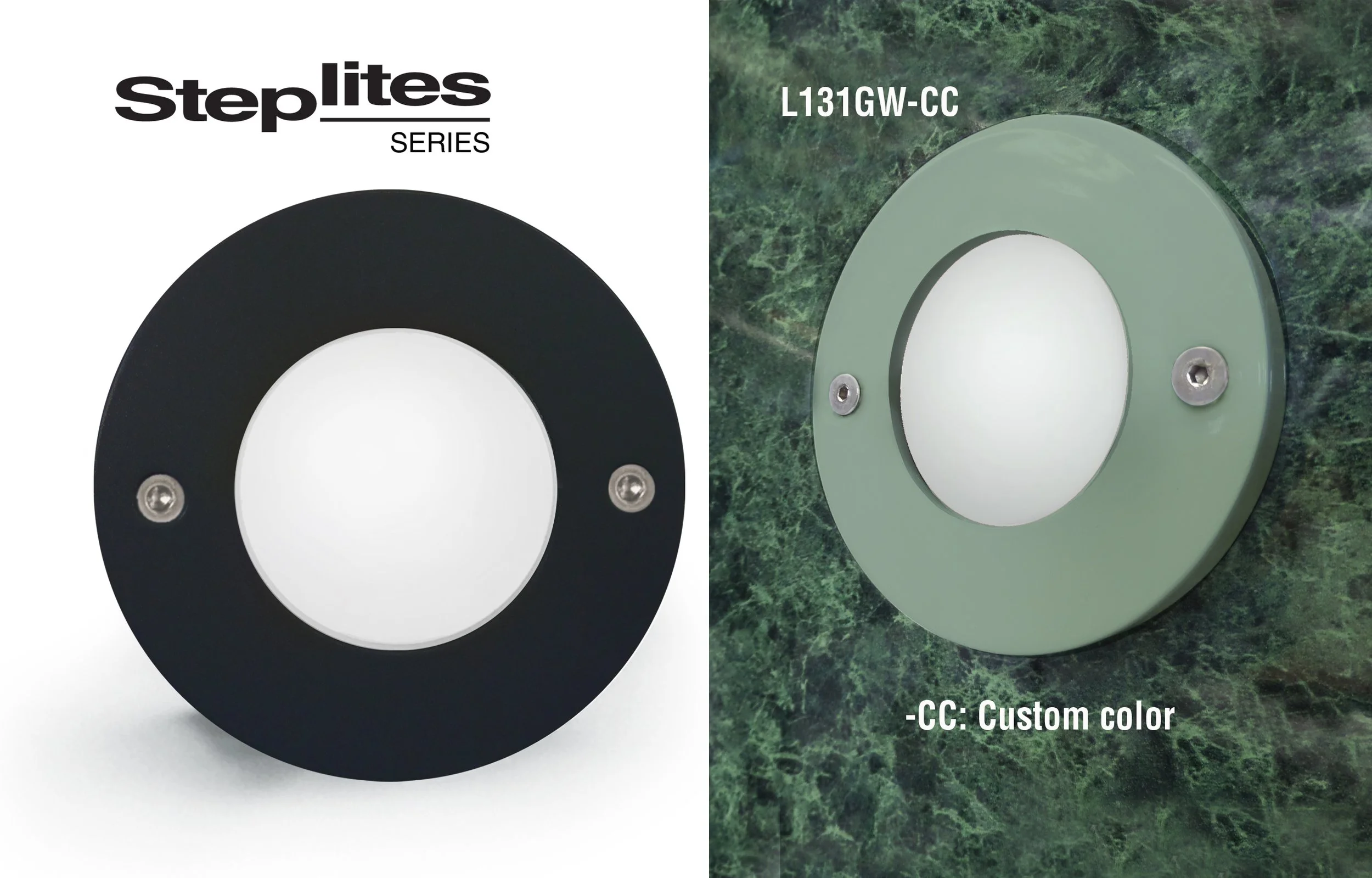

  • Clear ribbed spread lens (L131) or opal lens (L131G) set in silicone sealant

  • cETLus listed, suitable for wet locations in any wall construction

Electrical

  • High performance LEDs are available in a variety of colors

  • Integral universal voltage driver is standard; 120V ELV dimming driver optional

  • Housing provided with two 1/2" conduit knockouts

  • Core drilled versions include 6 ft., 18/3 jacketed cord and weatherproof strain relief
