L121S Series

This ultra compact Steplite features high performance LEDs and a modern square design. It is appropriate in a variety of interior or exterior applications. The rugged construction, engineering excellence, and quality make this fixture ideal for specification in most public areas.

Construction

  • Housing is 16 gauge stainless steel suitable for concrete pour installations

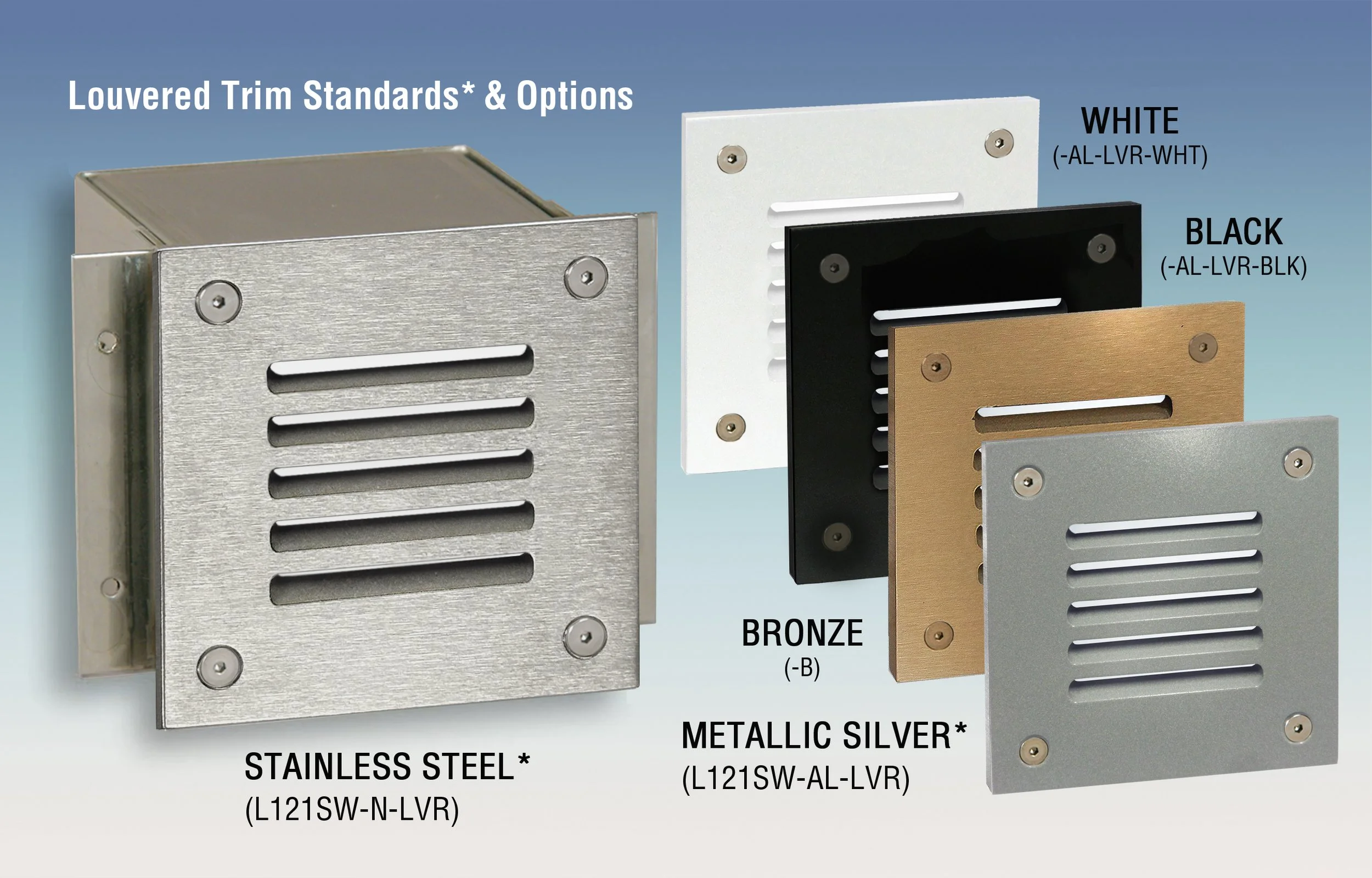

  • Faceplate is 1/8" metallic silver powder-coated aluminum or satin finished stainless steel passivated for maximum rust resistance

  • Wet location fixtures are furnished with stainless steel socket head tamperproof screws; fastenerless faceplates available for damp or dry locations

  • Diffuser is frosted or opal tempered glass set in silicone sealant

  • cETLus listed for installation in wet locations

Electrical

  • High performance LEDs are available in a variety of colors

  • Integral universal voltage driver is standard; 120v ELV dimming driver optional

  • Housing provided with two 1/2" conduit knockouts
